Coordinate-patch causal-swap benchmark

JacobianLens.coordinate_patch_hooks installs an anchored J-space coordinate edit live inside a forward pass. This notebook asks whether that edit causes a directional change in model output, under three controls:

• Baseline-capability filtering. A prompt only enters the intervention trials if the unperturbed model already answers it correctly; a swap is never scored against a prompt the model already gets wrong. A baseline whose answer is tied for the top logit is treated as not capable, since argmax would otherwise let token-id order decide admission.

• Displacement-matched random-atom control. Every real trial (patch toward the actual target concept) is paired with a control trial that patches toward a token whose lens-dictionary atom sits at the same displacement from the source atom as the real target’s, within a fixed relative tolerance. The perturbation is c_src * (a_target - a_source), so its size is set by ||a_target - a_source||; matching atom norms instead would leave that size free. This isolates “swapping toward this concept mattered” from “any coordinate edit of this magnitude would have mattered.” Each trial draws its control arm under several seeds and records every draw, because a single draw leaves the control arm’s own variance unmeasured.

• Exact Clopper-Pearson intervals. Every reported success rate carries an exact 95% interval, not a bare point estimate. A percentile bootstrap cannot express uncertainty about an all-failure sample: it collapses to [0, 0] whether the run had one trial or a thousand, whereas the exact upper bound for 0 of 6 is 0.46.

Each trial installs coordinate_patch_hooks at exactly one layer and the final prompt position – a single-layer intervention, not a multi-layer band. A trial whose source concept is not active in that layer’s support, or whose layer admits no displacement-matched control, is recorded as skipped, not silently dropped and not counted as a failure. Because several trials can share one prompt, the pooled rate also travels with the number of independent prompts behind it.

This notebook loads a frozen artifact and never calls the model. The artifact was generated once, out-of-band, by running the benchmark’s CLI entry point; see the load cell below for the exact command. Re-running the sweep is a separate, explicit step, not something this notebook triggers.

# NBVAL_IGNORE_OUTPUT
import os

IN_GITHUB = os.getenv("GITHUB_ACTIONS") == "true"
print("Running under GitHub Actions" if IN_GITHUB else "Running locally")

Running locally

from pathlib import Path

import numpy as np
import pandas as pd

from transformer_lens.tools.analysis import load_artifact, success_rate_ci

ARTIFACT_NAME = "jacobian_lens_causal_swap_benchmark_gpt2.json"


def _find_artifact() -> Path:
    """Locates the frozen artifact from a repository checkout.

    The artifact lives under ``demos/data/``, which the published wheel does not ship, so
    this notebook only runs from a checkout. Searched upward from the working directory so
    the notebook works whether it is launched from ``demos/`` or the repository root.
    """
    for root in [Path.cwd(), *Path.cwd().parents]:
        candidate = root / "demos" / "data" / ARTIFACT_NAME
        if candidate.exists():
            return candidate
    raise FileNotFoundError(
        f"could not find demos/data/{ARTIFACT_NAME} in {Path.cwd()} or any parent "
        "directory. This notebook requires a repository checkout: it loads a frozen "
        "artifact that is not packaged in the transformer_lens wheel. Clone the repository "
        "and run the notebook from within it, or regenerate the artifact with "
        "`uv run python -m transformer_lens.tools.analysis."
        "jacobian_lens_causal_swap_benchmark_cli`."
    )


ARTIFACT_PATH = _find_artifact()
REPO_ROOT = ARTIFACT_PATH.parents[2]
artifact = load_artifact(ARTIFACT_PATH)
manifest = artifact["protocol_manifest"]
print(f"artifact={ARTIFACT_PATH.relative_to(REPO_ROOT)}")
print(f"schema_version={artifact['schema_version']}")
print(f"protocol_fingerprint={artifact['protocol_fingerprint']}")
print(f"results_fingerprint={artifact['results_fingerprint']}")
print(
    f"model={manifest['model_id']} lens={manifest['lens_repo']}/{manifest['lens_file']} "
    f"@{manifest['lens_revision']}"
)
print(
    f"corpus={manifest['corpus_name']} "
    f"(from {manifest['corpus_repo']}/{manifest['corpus_path']}@{manifest['corpus_revision']})"
)
print(f"layers_swept={manifest['layers_swept']} layers_executed={artifact['layers_executed']}")
print(f"alpha={manifest['alpha']} control_seeds={manifest['control_seeds']}")

artifact=demos/data/jacobian_lens_causal_swap_benchmark_gpt2.json
schema_version=2
protocol_fingerprint=b831263c046c1110ff56ddc4858b3aea41cd9677a6a04331d5563e554a33d65f
results_fingerprint=05321a650108369fafb68c59cc159502a3c46fb6a553cdd82a84e40cbcf7c12b
model=gpt2 lens=neuronpedia/jacobian-lens/gpt2-small/jlens/Salesforce-wikitext/gpt2_jacobian_lens.pt @a4114d7752d11eb546e6cf372213d7e75526d3a1
corpus=countries (from anthropics/jacobian-lens/data/experiments/flexible-generalization.json@581d398613e5602a5af361e1c34d3a92ea82ba8e)
layers_swept=[0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10] layers_executed=[9, 10]
alpha=1.0 control_seeds=[0, 1, 2, 3, 4]

Baseline coverage and per-function success

The unconditional country/function corpus is reused from the existing swap_hooks country-swap demo; here it runs against GPT-2-small rather than gemma-2-2b, and only prompts that survive the baseline-capability filter reach the intervention trials below.

executed_trials counts trials where the source concept was active in the patched layer’s support (so a real and control condition both ran); skipped_trials counts the rest, which are reported beside the executed count rather than hidden. Most of the sweep is skipped: the source concept is active in only a couple of the swept layers, so the layers that actually execute are listed separately from the layers that were requested. A function with no executed trials still has its excluded-baseline and skipped counts reported – it is not silently omitted.

trials_df = pd.DataFrame(artifact["trials"])
excluded_df = pd.DataFrame(artifact["excluded_baselines"])

ok_df = trials_df[trials_df["status"] == "ok"].copy()
ok_df["real_success"] = ok_df["real_target_metrics"].apply(lambda m: m["target_is_top1"])
ok_df["control_success"] = ok_df["control_target_metrics"].apply(lambda m: m["target_is_top1"])
ok_df["baseline_rank"] = ok_df["baseline"].apply(lambda m: m["target_rank"])
ok_df["real_rank"] = ok_df["real_target_metrics"].apply(lambda m: m["target_rank"])
ok_df["control_rank"] = ok_df["control_target_metrics"].apply(lambda m: m["target_rank"])
ok_df["control_token_id"] = ok_df["control_token_id"].astype(int)

functions = sorted(set(trials_df["function"]) | set(excluded_df["function"]))


def _rate_with_ci(successes):
    ci = success_rate_ci(successes)
    return f"{ci.point_estimate:.0%} [{ci.ci_low:.0%}, {ci.ci_high:.0%}]"


summary_rows = []
for function in functions:
    n_excluded = int((excluded_df["function"] == function).sum()) if len(excluded_df) else 0
    subset = ok_df[ok_df["function"] == function]
    skipped = int(((trials_df["function"] == function) & (trials_df["status"] != "ok")).sum())
    summary_rows.append(
        {
            "function": function,
            "excluded_baseline_prompts": n_excluded,
            "executed_trials": len(subset),
            "skipped_trials": skipped,
            "real_success": (
                _rate_with_ci(subset["real_success"].tolist()) if len(subset) else "n/a"
            ),
            "control_success": (
                _rate_with_ci(subset["control_success"].tolist()) if len(subset) else "n/a"
            ),
        }
    )

overall_real_ci = artifact["real_success_ci"]
overall_control_ci = artifact["control_success_ci"]
summary_rows.append(
    {
        "function": "overall",
        "excluded_baseline_prompts": len(excluded_df),
        "executed_trials": len(ok_df),
        "skipped_trials": int((trials_df["status"] != "ok").sum()),
        "real_success": (
            f"{overall_real_ci['point_estimate']:.0%} "
            f"[{overall_real_ci['ci_low']:.0%}, {overall_real_ci['ci_high']:.0%}]"
        ),
        "control_success": (
            f"{overall_control_ci['point_estimate']:.0%} "
            f"[{overall_control_ci['ci_low']:.0%}, {overall_control_ci['ci_high']:.0%}]"
        ),
    }
)

summary_table = pd.DataFrame(summary_rows)
print(
    f"pooled rate rests on {artifact['n_independent_prompts']} independent prompt(s); "
    f"executed layers {artifact['layers_executed']} of swept {manifest['layers_swept']}"
)
summary_table

pooled rate rests on 1 independent prompt(s); executed layers [9, 10] of swept [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

	function	excluded_baseline_prompts	executed_trials	skipped_trials	real_success	control_success
0	capital	3	0	33	n/a	n/a
1	continent	2	6	60	0% [0%, 46%]	0% [0%, 46%]
2	currency	4	0	0	n/a	n/a
3	language	1	0	99	n/a	n/a
4	overall	10	6	192	0% [0%, 46%]	0% [0%, 46%]

Visual summary

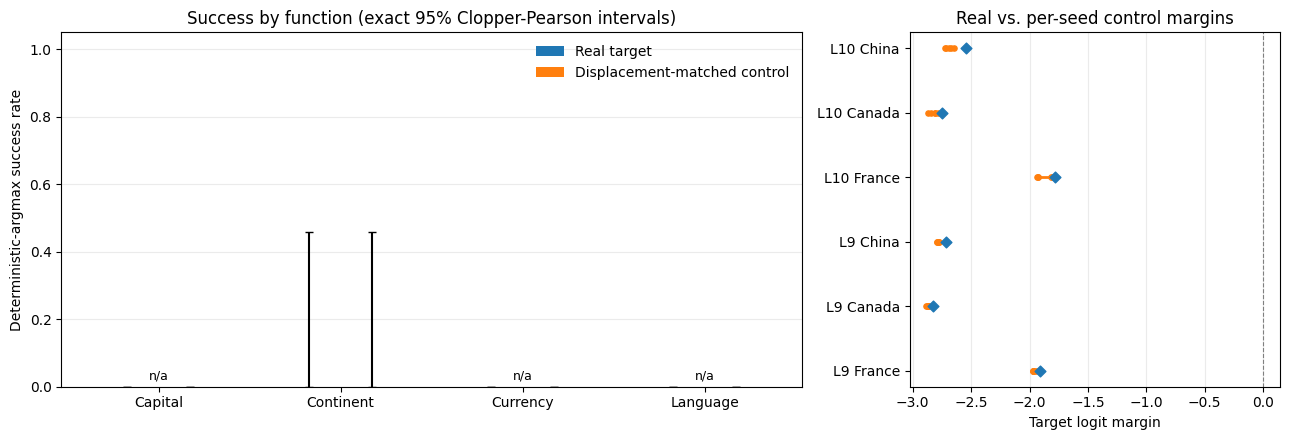

Left: real (patch toward the actual target concept) versus control (patch toward a displacement-matched random token) success by function, with exact 95% Clopper-Pearson intervals. A function with no executed trials is marked n/a rather than plotted as zero.

Right: the control arm’s own spread. Each row is one executed trial; the orange whisker spans the per-seed control margins and the blue diamond is the real condition’s margin. A single control draw would leave this spread invisible.

import matplotlib.pyplot as plt

plot_functions = [row["function"] for row in summary_rows if row["function"] != "overall"]
x = np.arange(len(plot_functions))
width = 0.35

real_values = []
real_errs = [[], []]
control_values = []
control_errs = [[], []]
has_data = []
for function in plot_functions:
    subset = ok_df[ok_df["function"] == function]
    if len(subset) == 0:
        has_data.append(False)
        real_values.append(0.0)
        control_values.append(0.0)
        real_errs[0].append(0.0)
        real_errs[1].append(0.0)
        control_errs[0].append(0.0)
        control_errs[1].append(0.0)
        continue
    has_data.append(True)
    real_ci = success_rate_ci(subset["real_success"].tolist())
    control_ci = success_rate_ci(subset["control_success"].tolist())
    real_values.append(real_ci.point_estimate)
    real_errs[0].append(real_ci.point_estimate - real_ci.ci_low)
    real_errs[1].append(real_ci.ci_high - real_ci.point_estimate)
    control_values.append(control_ci.point_estimate)
    control_errs[0].append(control_ci.point_estimate - control_ci.ci_low)
    control_errs[1].append(control_ci.ci_high - control_ci.point_estimate)

fig, (ax, spread_ax) = plt.subplots(
    1, 2, figsize=(13, 4.5), gridspec_kw={"width_ratios": [2, 1]}
)
ax.bar(x - width / 2, real_values, width, yerr=real_errs, capsize=3, label="Real target")
ax.bar(
    x + width / 2,
    control_values,
    width,
    yerr=control_errs,
    capsize=3,
    label="Displacement-matched control",
)
for i, present in enumerate(has_data):
    if not present:
        ax.annotate("n/a", (x[i], 0.02), ha="center", fontsize=9, color="black")
ax.set(
    ylabel="Deterministic-argmax success rate",
    xticks=x,
    xticklabels=[f.title() for f in plot_functions],
    ylim=(0, 1.05),
)
ax.legend(frameon=False)
ax.grid(axis="y", alpha=0.25)
ax.set_title("Success by function (exact 95% Clopper-Pearson intervals)")

spread_ax.axvline(0.0, color="grey", linewidth=0.8, linestyle="--")
spread_labels = []
for row_index, (_, trial) in enumerate(ok_df.iterrows()):
    margins = [draw["metrics"]["target_logit_margin"] for draw in trial["control_draws"]]
    spread_labels.append(f"L{trial['layer']} {trial['target']}")
    spread_ax.plot(
        [min(margins), max(margins)], [row_index, row_index], color="tab:orange", linewidth=2
    )
    spread_ax.scatter(margins, [row_index] * len(margins), color="tab:orange", s=14, zorder=3)
    spread_ax.scatter(
        [trial["real_target_metrics"]["target_logit_margin"]],
        [row_index],
        color="tab:blue",
        marker="D",
        s=30,
        zorder=4,
    )
spread_ax.set(
    xlabel="Target logit margin",
    yticks=range(len(spread_labels)),
    yticklabels=spread_labels,
    title="Real vs. per-seed control margins",
)
spread_ax.grid(axis="x", alpha=0.25)
fig.tight_layout()
plt.show()

Per-trial detail

Every trial that survived baseline filtering and had its source concept active in the patched layer’s support (executed_trials above). control_token_id is the raw vocabulary index of the first seed’s displacement-matched control token; this notebook does not load a tokenizer, so it is not decoded to text here. control_margin_min / control_margin_max span the per-seed control draws, so a reader can see whether the real condition’s margin sits inside the control arm’s own range.

detail_columns = [
    "function",
    "source",
    "target",
    "layer",
    "baseline_rank",
    "real_rank",
    "real_success",
    "control_token_id",
    "control_rank",
    "control_success",
]
detail = ok_df[detail_columns].copy()
detail["control_draws"] = ok_df["control_draws"].apply(len)
detail["control_margin_min"] = ok_df["control_draws"].apply(
    lambda draws: min(draw["metrics"]["target_logit_margin"] for draw in draws)
)
detail["control_margin_max"] = ok_df["control_draws"].apply(
    lambda draws: max(draw["metrics"]["target_logit_margin"] for draw in draws)
)
detail.sort_values(["function", "layer", "source", "target"]).reset_index(drop=True)

	function	source	target	layer	baseline_rank	real_rank	real_success	control_token_id	control_rank	control_success	control_draws	control_margin_min	control_margin_max
0	continent	Egypt	Canada	9	1	5	False	4950	5	False	5	-2.882076	-2.858517
1	continent	Egypt	China	9	1	4	False	20703	4	False	5	-2.794788	-2.774384
2	continent	Egypt	France	9	1	3	False	11871	3	False	5	-1.971466	-1.948174
3	continent	Egypt	Canada	10	1	5	False	35108	5	False	5	-2.872368	-2.783318
4	continent	Egypt	China	10	1	4	False	21473	4	False	5	-2.727425	-2.644867
5	continent	Egypt	France	10	1	3	False	3908	3	False	5	-1.934765	-1.806351

Interpretation and caveats

• This is a directional causal-effect measurement under the stated controls, not proof of unique causal mediation: a successful swap shows the edit moved the output the predicted way relative to a displacement-matched random edit, nothing stronger.

• Rates carry exact Clopper-Pearson intervals, and the pooled rate is reported beside the number of independent prompts behind it. Several trials can share one prompt, so the pooled trial count overstates the evidence; read the interval and the prompt count together, not the point estimate alone.

• The control arm is sampled across several seeds per trial, and the per-seed spread is plotted and tabulated. A real-vs-control gap that sits inside that spread is not evidence of a concept-specific effect.

• Most of the swept layers never execute: the source concept is active in only a couple of layers, so the executed-layer list is much shorter than the swept-layer list. The skipped counts are reported beside the executed counts rather than dropped.

• Results are reported for GPT-2-small only; no claim is made about closed-weight models, and no claim about other open-weight models is implied.

• The corpus is the fixed reused country/function set; this is not an exhaustive-coverage claim over concepts or functions.

• Every trial is a single-layer intervention (one layer, the final prompt position). This says nothing about a multi-layer band protocol, which coordinate_patch_hooks was not designed for (stacking hooked layers is order-dependent and can raise).

• This notebook is independent of the existing swap_hooks country-swap benchmark elsewhere in this repository: different mechanism, different model, different protocol. Neither supersedes the other.
